 |  موضوع: رسالة دكتوراة بعنوان Efficient Finite Element Modelling of Ultrasound Waves in Elastic Media السبت 22 أكتوبر 2022, 9:31 pm | |
|
أخواني في الله
أحضرت لكم

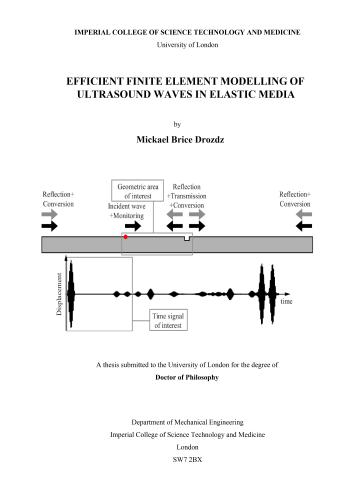

رسالة دكتوراة بعنوان
Efficient Finite Element Modelling of Ultrasound Waves in Elastic Media
by
Mickael Brice Drozdz
A thesis submitted to the University of London for the degree of
Doctor of Philosophy
IMPERIAL COLLEGE OF SCIENCE TECHNOLOGY AND MEDICINE
University of London
Department of Mechanical Engineering
Imperial College of Science Technology and Medicine
و المحتوى كما يلي :
Table of contents
Chapter 1
Introduction
1. Introduction . 18
2. Objectives 19
3. Outline of the thesis . 22
Chapter 2
Theoretical background
1. Introduction . 24
2. Theory of wave propagation in elastic media . 24
2.1 Bulk wave propagation 24
2.1.1 Bulk wave propagation in infinite isotropic elastic media 24
2.1.2 Bulk propagation in a semi-infinite isotropic elastic medium . 26
2.2 Guided wave propagation in a plate 28
3. Finite elements modelling of wave propagation . 34
3.1 Explicit method 35
3.2 Implicit method 37
3.2.1 ABAQUS/Standard procedure . 38
3.2.2 COMSOL Multiphysics procedure . 40
4. Conclusions . 42
Chapter 3
Modelling waves in unbounded elastic media using absorbing layers
1. Introduction . 43
2. Review of non-investigated techniques 45
2.1 Infinite element methods . 45
2.2 Non reflecting boundary condition . 47
3. Absorbing layer theory 47
3.1 Concept 47
3.2 Perfectly matched layer (PML) 48
3.3 Absorbing layer using increasing damping (ALID) 50
4. Efficient layer parameters’ definition . 53
4.1 Analytical model for bulk waves . 54
4.1.1 General definition 55
4.1.2 Validation procedure 55
4.1.3 PML analytical model . 57
4.1.4 ALID analytical model 61
4.2 Analytical model for 2D guided wave cases 66
4.2.1 Consideration for guided wave PML implementation 66
4.2.2 Validation procedure 67
4.2.3 PML analytical model for guided wave cases 68
4.2.4 ALID analytical model 71
5. Demonstrators . 77
5.1 Computational efficiency 77
5.1.1 Bulk wave model 77
5.1.2 Guided wave model 80Table of contents
7
5.2 Time reconstruction 81
5.3 Wave scattering 84
5.3.1 Single-mode reflection coefficient . 84
5.3.2 Multi-mode reflection coefficient 86
6. Discussion 88
7. Conclusion 89
Chapter 4
On the influence of mesh parameters on elastic bulk wave velocities
1. Introduction . 90
2. Explicit solving 91
2.1 Introduction . 91
2.2 Linear quadrilateral elements . 92
2.2.1 Square elements . 92
2.2.2 Rectangle elements 100
2.2.3 Rhombus elements 102
2.2.4 Parallelogram elements . 104
2.2.5 Conclusion 105
2.3 Linear triangular elements . 106
2.3.1 Equilateral triangle elements . 106
2.3.2 Isosceles triangle elements 110
2.3.3 Scalene triangle elements . 112
2.3.4 Conclusion 114
2.4 Modified quadratic triangular elements . 114
2.4.1 Equilateral triangle elements . 114
2.4.2 Isosceles triangle elements 119
2.4.3 Scalene triangle elements . 120
2.4.4 Conclusion 122
3. Implicit solving . 123
3.1 Introduction 123
3.2 Linear quadrilateral elements 123
3.2.1 Square elements 123
3.2.2 Rectangle elements 124
3.2.3 Rhombus elements 125
3.2.4 Parallelogram elements . 126
3.2.5 Conclusion 127
3.3 Quadratic quadrilateral elements 128
3.3.1 Square elements 128
3.3.2 Rectangle elements 129
3.3.3 Rhombus elements 130
3.3.4 Parallelogram elements . 131
3.3.5 Conclusion 132
3.4 Linear triangular elements . 133
3.4.1 Equilateral triangle elements . 133
3.4.2 Isosceles triangle elements 133
3.4.3 Scalene triangle elements . 134
3.4.4 Conclusion 135
3.5 Quadratic triangular elements 136
3.5.1 Equilateral triangle elements . 136
3.5.2 Isosceles triangle elements 137
3.5.3 Scalene triangle elements . 138Table of contents
8
3.5.4 Conclusion 139
3.6 Modified quadratic equilateral triangular elements 139
3.6.1 Equilateral triangle elements . 139
3.6.2 Isosceles triangle elements 140
3.6.3 Scalene triangle elements . 141
3.6.4 Conclusion 142
4. Conclusions 142
Chapter 5
Accurate modelling of defects using Finite Elements
1. Introduction 146
2. Model definition 148
3. Reflection from a straight edge . 150
4. Reflection from a straight crack at an angle . 156
4.1 Crack of unit length 158
4.2 Crack of length 0.25 . 161
4.3 Crack of length 4 165
4.4 Conclusion . 168
5. Reflection from circular defects 168
5.1 Hole of unit diameter . 170
5.2 Hole of diameter 0.25 173
5.3 Hole of diameter 4 . 176
5.4 Conclusion . 178
6. Conclusions 179
Chapter 6
Local mesh refinement
1. Introduction 181
2. Fictitious domain technique . 182
2.1 Review 182
2.2 Presentation 182
2.3 Conclusion . 183
3. Abrupt mesh density variation . 183
3.1 1D wave propagation models 183
3.1.1 Model definition 183
3.1.2 L wave 1D model using theoretical material properties 185
3.1.3 L wave 1D model with matched acoustic impedance 186
3.1.4 L and S wave 1D model with matched acoustic impedance . 187
3.1.5 L and S wave 1D model with varying acoustic impedance . 190
3.1.6 L wave 1D model with different mesh ratio . 193
3.2 2D wave propagation models 195
3.2.1 Model definition 195
4. Gradual mesh density variation . 199
4.1 1D wave propagation model . 199
4.2 2D wave propagation model . 201
5. Conclusions 202Table of contents
9
Chapter 7
Conclusions
1. Review of thesis 204
2. Summary of findings . 205
2.1 Absorbing layers 205
2.2 Influence of mesh parameters on the elastic bulk wave velocities 207
2.3 Accurate modelling of complex defects using Finite Elements 208
2.4 Local mesh refinement . 209
3. Future work 210
3.1 Absorbing layers 210
3.2 Influence of mesh parameters on the elastic bulk wave velocities 210
3.3 Accurate modelling of complex defects using Finite Elements 211
3.4 Local mesh refinement . 211
